Poulie MTU Detroit 5145390

Agrandir l'image

Référence CT12-2

État : Nouveau

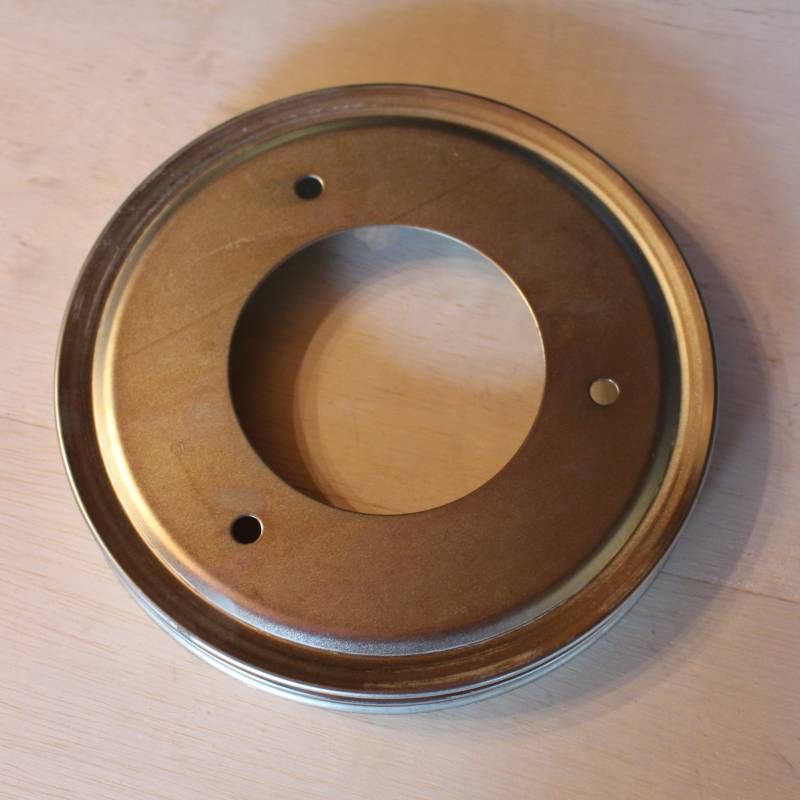

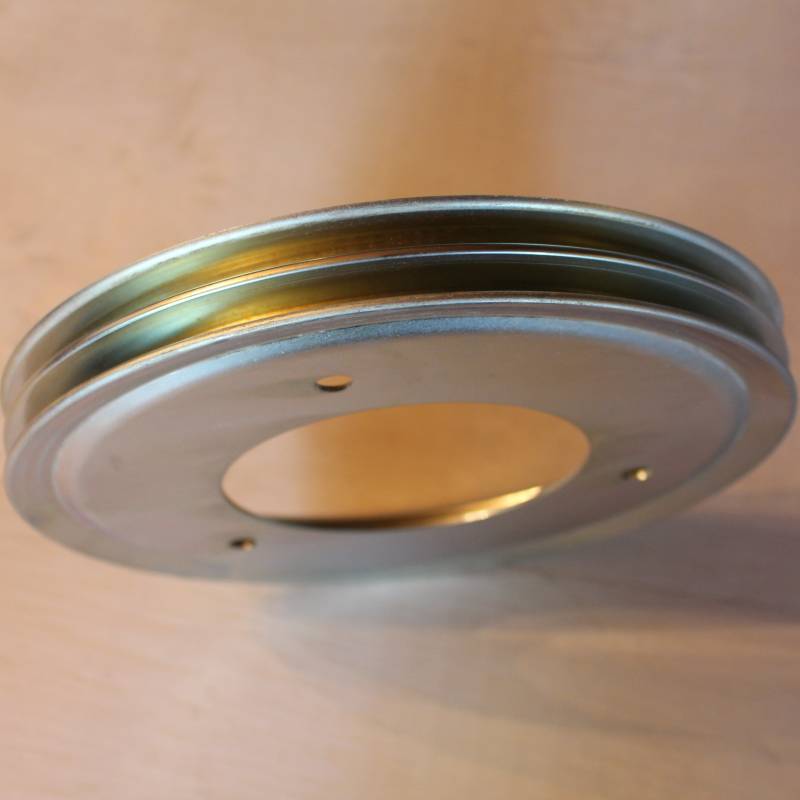

Poulie MTU Detroit

PN 5145390

NSN 3020-01-162-2868 3020011622868

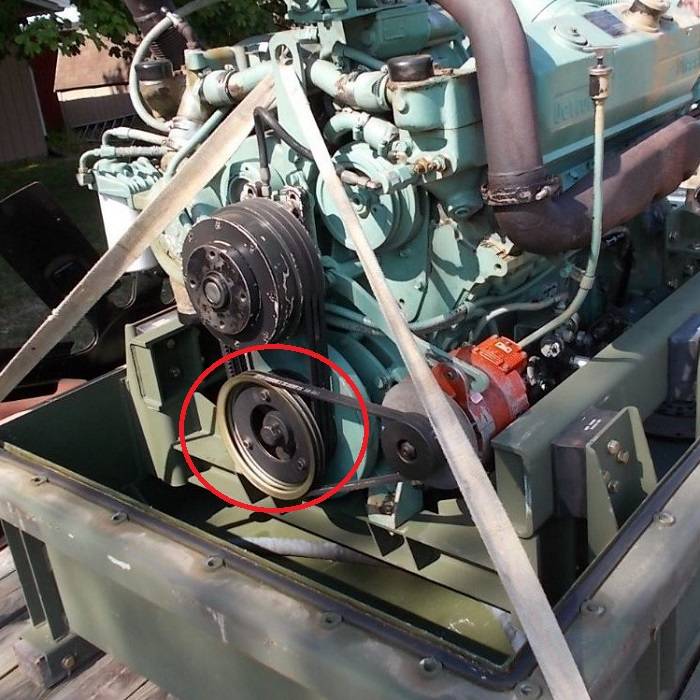

Fits 8V92 HEMTT M977 Engine

5 Article Produits

3020-01-162-2868 Features

MRC	Parameter	Characteristics
ABGA	Groove Depth	0.438 inches nominal
ABGF	Groove Width	0.438 inches nominal
ABHE	Outside Diameter	9.088 inches nominal
ABXV	Bore Diameter	4.225 inches nominal
ADGE	Bore Length	0.045 inches nominal
AGGP	Drilled Hole Diameter	0.500 inches nominal
AGGS	V Groove Angle in DEG	30.0
AHYF	Securing Hole Quantity	4
ANNQ	Material and Location	Steel overall
AQPL	Face Width	1.088 inches nominal
ARJD	Design Form	Spoked
ASBP	Bore Type	Straight
AWJQ	Bearings	Not included
AXHQ	Groove Quantity	2
AXND	Counterbore Feature	Not included
BFYT	Hole Location	On hub face
BSGG	Keying Facility	Not included
BSNP	Securing Method	Drilled hole
BSYG	Split Hub Feature	Not included
BXSH	Web/Spoke Relationship to Face Centerline	Offset
BXSJ	Lightening Hole	Not included
BXSK	Integral Cooling Vane	Not included
BXSM	Groove Shape	V
BYDS	Bore Feature	Included
BYFF	Securing Location	Aa end
BYZF	Distance from Outside Flange/RIM to Hub End and Location	1.000 inches nominal aa end
STYL	Style Designator	Webbed or spoked
