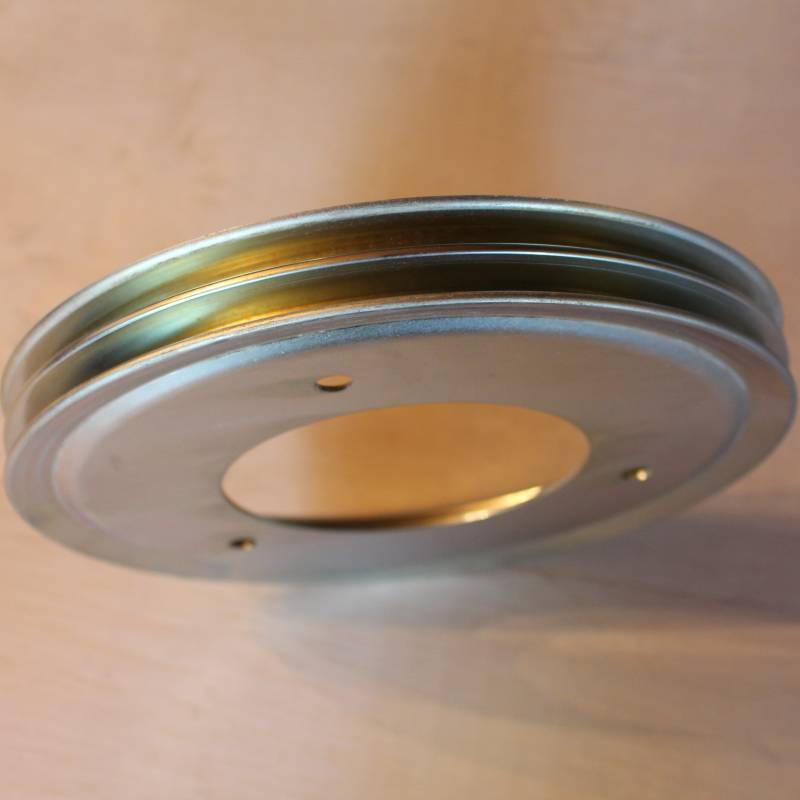

Pulley MTU Detroit 5145390

Pulley MTU Detroit 5145390 View larger

New

Poulie MTU Detroit

PN 5145390

NSN 3020-01-162-2868 3020011622868

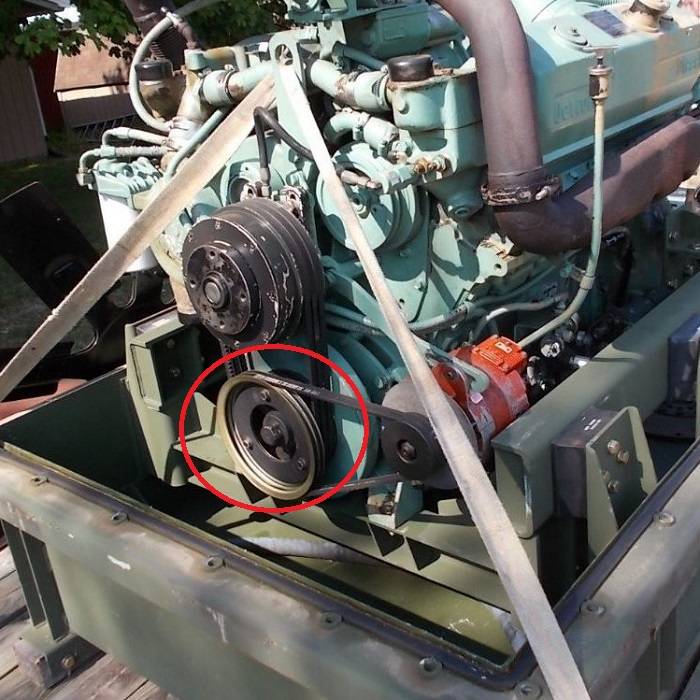

Fits 8V92 HEMTT M977 Engine

More details

35,00 €

3020-01-162-2868 Features

MRCParameterCharacteristics
ABGAGroove Depth0.438 inches nominal
ABGFGroove Width0.438 inches nominal
ABHEOutside Diameter9.088 inches nominal
ABXVBore Diameter4.225 inches nominal
ADGEBore Length0.045 inches nominal
AGGPDrilled Hole Diameter0.500 inches nominal
AGGSV Groove Angle in DEG30.0
AHYFSecuring Hole Quantity4
ANNQMaterial and LocationSteel overall
AQPLFace Width1.088 inches nominal
ARJDDesign FormSpoked
ASBPBore TypeStraight
AWJQBearingsNot included
AXHQGroove Quantity2
AXNDCounterbore FeatureNot included
BFYTHole LocationOn hub face
BSGGKeying FacilityNot included
BSNPSecuring MethodDrilled hole
BSYGSplit Hub FeatureNot included
BXSHWeb/Spoke Relationship to Face CenterlineOffset
BXSJLightening HoleNot included
BXSKIntegral Cooling VaneNot included
BXSMGroove ShapeV
BYDSBore FeatureIncluded
BYFFSecuring LocationAa end
BYZFDistance from Outside Flange/RIM to Hub End and Location1.000 inches nominal aa end
STYLStyle DesignatorWebbed or spoked
