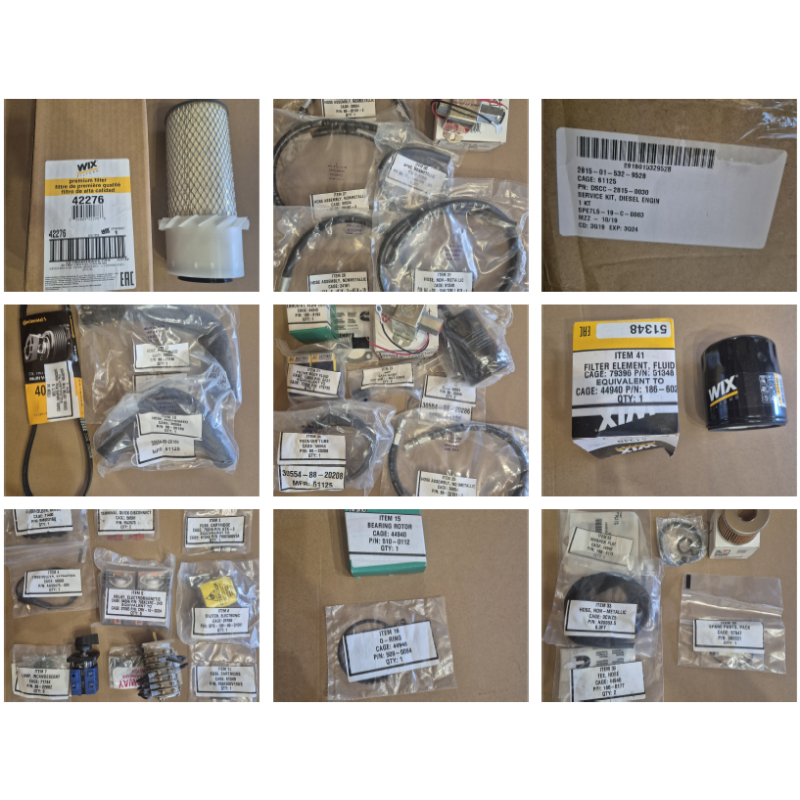

MEP-802A 5 kW TQG Tier 1 Service Kit
Nouveau
MEP-802A 5kW TQG Tier 1 Service Kit
NSN 2815-01-532-9528
P/N DSCC-2815-0030
7 Produits
| Gen Set RESET: Required TIER 1 Parts Replacement List for 5 KW TQG | |||
| MEP-802A ONAN DN2M 2-cylinder engine (Lister-Petter LPW2) | |||
| MEP-803A ONAN DN4M 4-cylinder engine (Lister-Petter LPW4) | |||
| DESCRIPTION | P/N | NSN | QTY |
| Control Box Assembly | |||
| "Quad" Fuse Kit Fuse Holder | BM6031SQ | 5920-00-816-6892 | 1 |
| Disconnect Terminal, Female | RB2573 | 5940-01-112-9746 | 2 |
| Fuse, 3A, 600V Time Delay | FNQ-R-3 | 5920-01-322-6986 | 1 |
| Relay | KUP14D15-24VDC | 5945-00-458-3351 | 5 |
| Light, Panel, Green | 88-22662 | 6240-01-470-4272 | 3 |
| S1 Switch, Rotary, 5 Position Master | 75902LV | 5930-01-531-2976 | 1 |
| S6 Switch, Rotary, Volt-Amp Meter | 31907LW | 5930-01-531-2977 | 1 |
| Conven Recept Fuse Kit | |||
| Fuse Holder | 150145 | 5920-01-396-1989 | 1 |
| Fuse 10A | F03A250V10A | 5920-00-243-3787 | 1 |
| Air Intake & Exhaust System | |||
| Filter Element | P14-8969 | 2940-00-934-7989 | 1 |
| Coolant System | |||

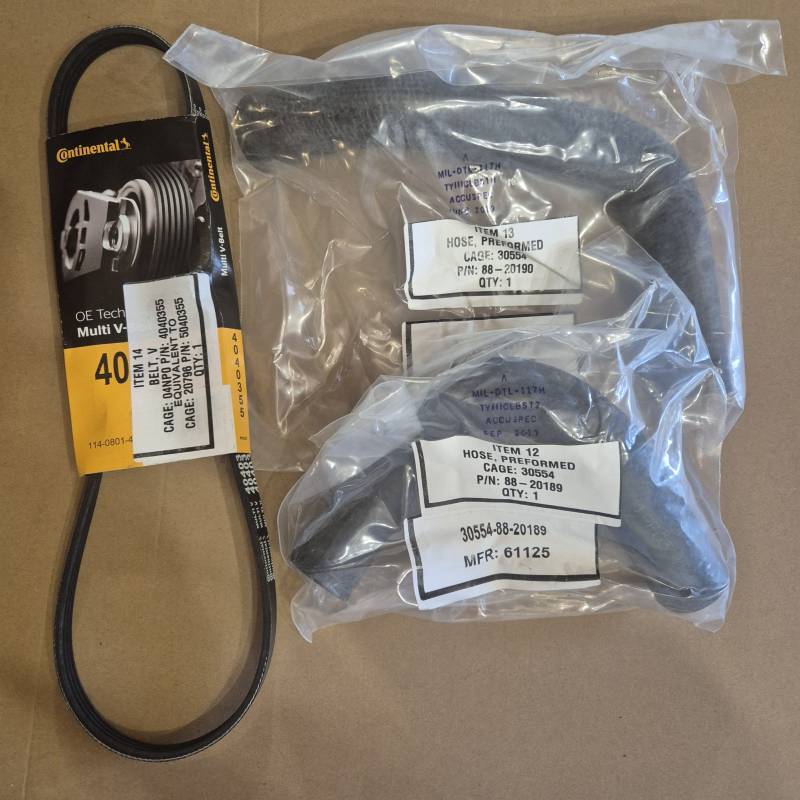

| Hose, Performed Radiator Upper | 88-20189 | 4720-01-385-1139 | 1 |
| Hose, Performed Radiator Lower | 88-20190 | 4720-01-389-0682 | 1 |
| Belt, V | 88-20273 | 3030-01-375-8087 | 1 |
| Generator Assembly | |||

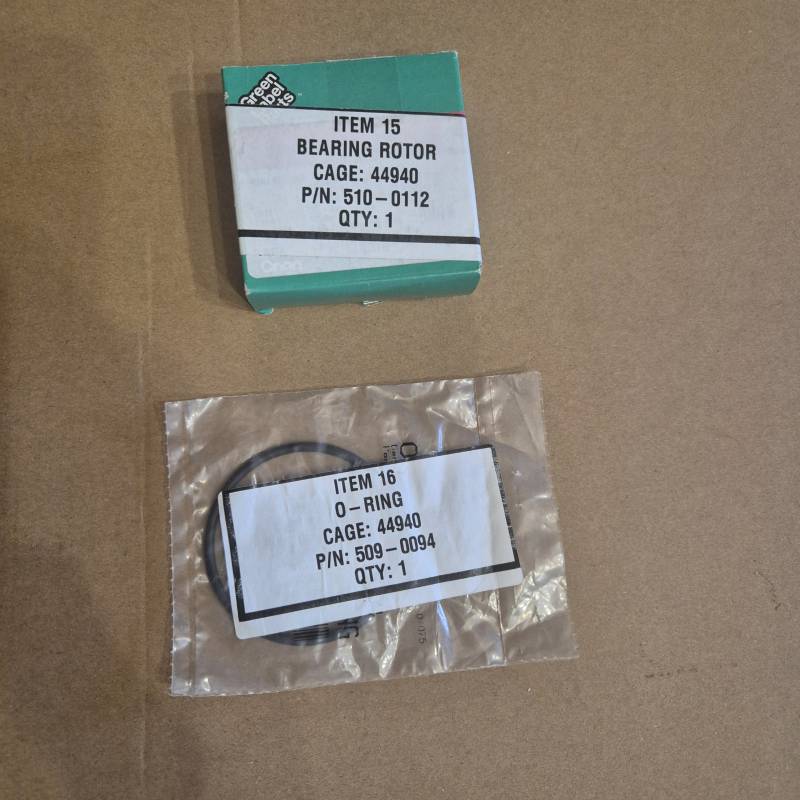

| Bearing Rotor | 510-0112 | 3110-01-160-9663 | 1 |
| O-Ring | 509-0094 | 5331-00-973-8598 | 1 |
| Cooling System | |||
| Thermostat, Flow Control | 186-6193 | 6685-01-360-9653 | 1 |
| Gasket | 186-6190 | 5330-01-358-5560 | 1 |
| Fuel System | |||
| Hose Assembly, Non-Metallic | 483666 | 4720-00-913-5910 | 3 |
| Hose Assembly, Non-Metallic | 33H581 | 4720-00-542-4668 | 1.5 |
| Hose Assembly, Non-Metallic | 88-20191-1 | 4720-01-434-3455 | 1 |
| Hose Assembly, Non-Metallic | 88-20191-2 | 4720-01-434-3456 | 1 |
| Hose Assembly, Non-Metallic | 88-20191-4 | 4720-01-434-3457 | 1 |
| Oil Hose Assembly, Non-Metallic | 88-20144 | 4720-01-367-0007 | 1 |
| Pump Fuel Electrical Main | 88-20192 | 2910-01-378-6025 | 1 |
| Pump Fuel Electrical Aux. | 88-21738 | 2910-01-366-7293 | 1 |
| Aux. Fuel line | 33H581 | 4720-00-542-4668 | 1.5 |
| Filter Fluid | 85285-F | 2910-01-376-5666 | 1 |
| Filter Body Fluid | 88-22755 | 2940-01-365-6535 | 2 |
| Nut | 88-21112 | 5310-01-197-1473 | 2 |
| Gasket | 88-20286 | 5330-01-366-2836 | 3 |
| Hose, Fuel Fill | 88-20208 | 4730-01-420-5286 | 1 |
| Washer Flat | 186-6173 | 5310-01-360-1982 | 2 |
| Hose , Non-Metallic | N20353.5 | 4720-01-483-6467 | 6.3 |
| T, Hose | 186-6177 | 4730-01-357-8706 | 2 |
| Fuel Filter Kit | 393331 | 2815-01-139-4010 | 1 |
| Element Filter | 201-13117 | 2910-01-416-5648 | 1 |
| Lubrication System | |||

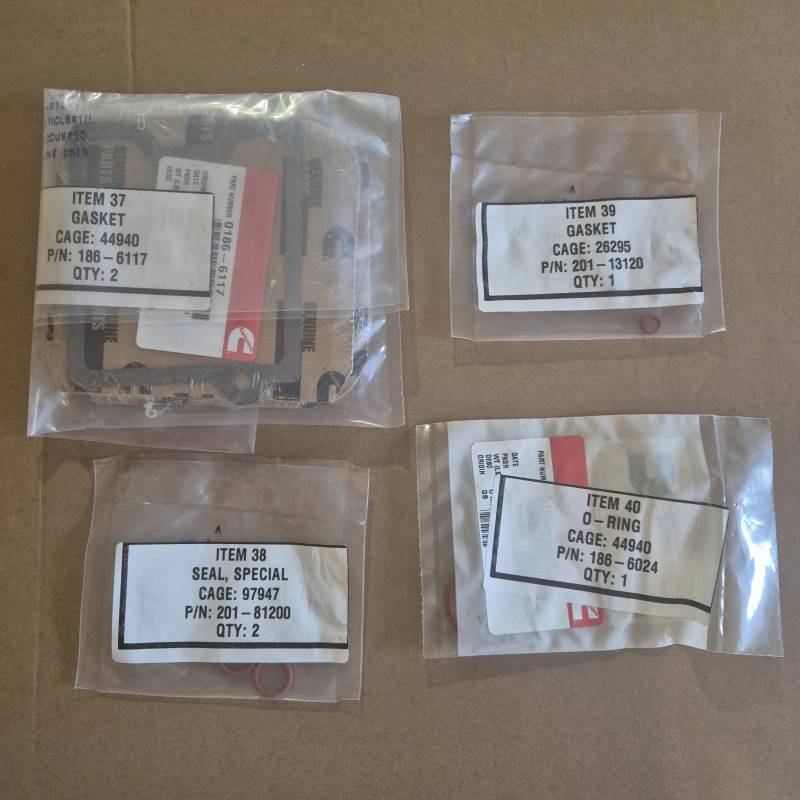

| Valve Cover Gasket | 186-6117 | 5330-01-356-7138 | 2 |
| Valve Cover Seal | 201-81200 | 5330-01-087-7373 | 2 |
| Dipstick Seal | 201-13120 | 5330-00-107-4151 | 1 |
| Oil Filler Cap Seal | 186-6024 | 5331-01-359-1499 | 1 |

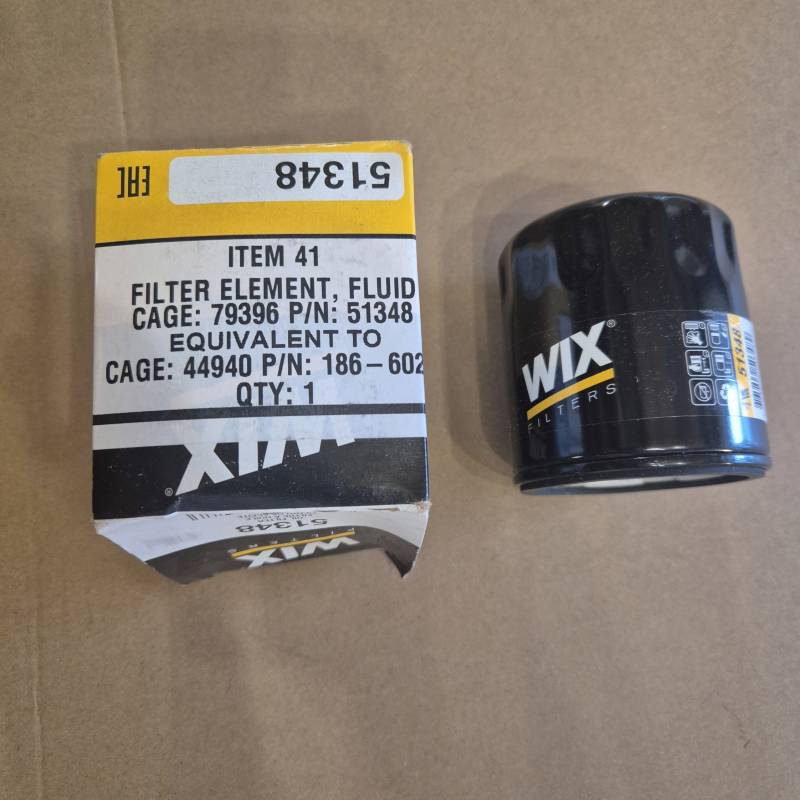

| Filter Element, Fluid | 186-6025 | 2940-01-154-5127 | 1 |
