Kelcor 60A65 Imperial 407-F
37° DEG Flaring Tool hand Operated
Kelcor 60A65
Imperial 407-F
Jasco 60A65 ; 60A65B
NSN 5180-00-799-8860

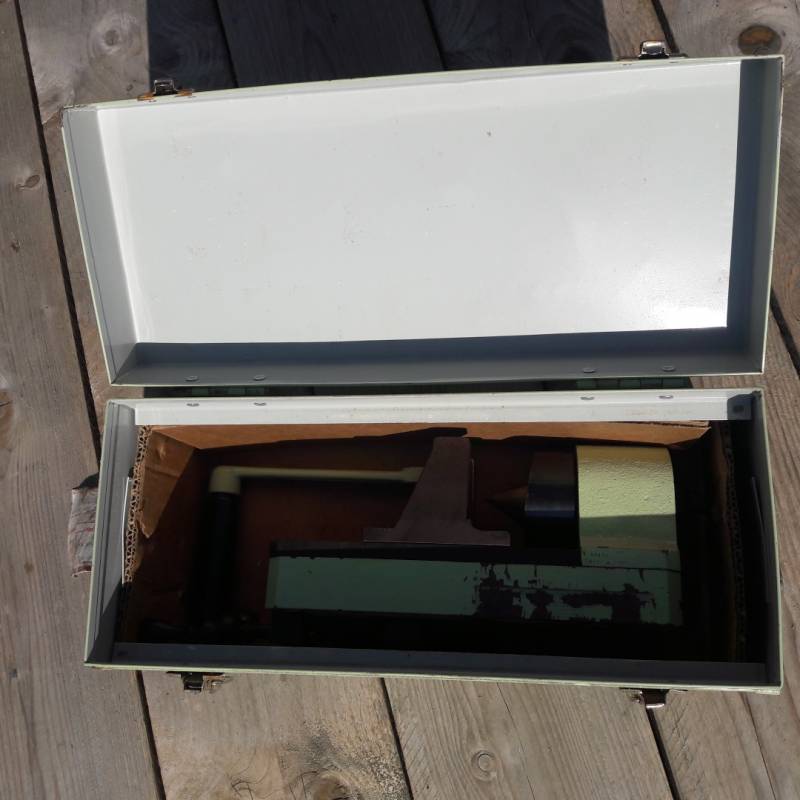

With metal box - Missing Jaw 6-10 (3/8 & 5/8)
Recipient :
* Required fields
or Cancel
Used
37° DEG Flaring Tool hand Operated
Kelcor 60A65
Imperial 407-F
Jasco 60A65 ; 60A65B
NSN 5180-00-799-8860
With metal box - Missing Jaw 6-10 (3/8 & 5/8)
Warning: Last items in stock!
Availability date:

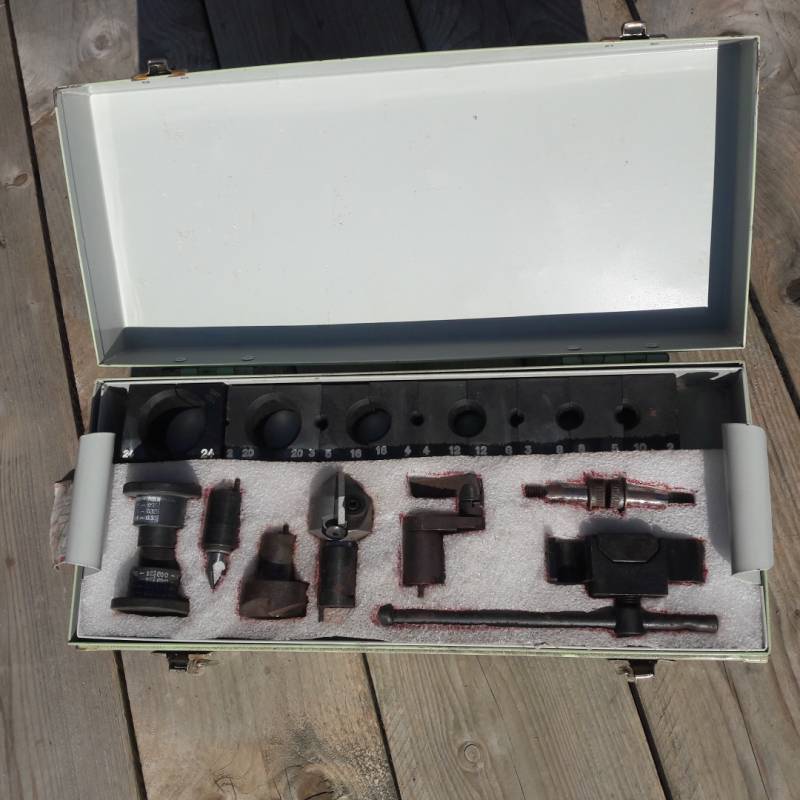

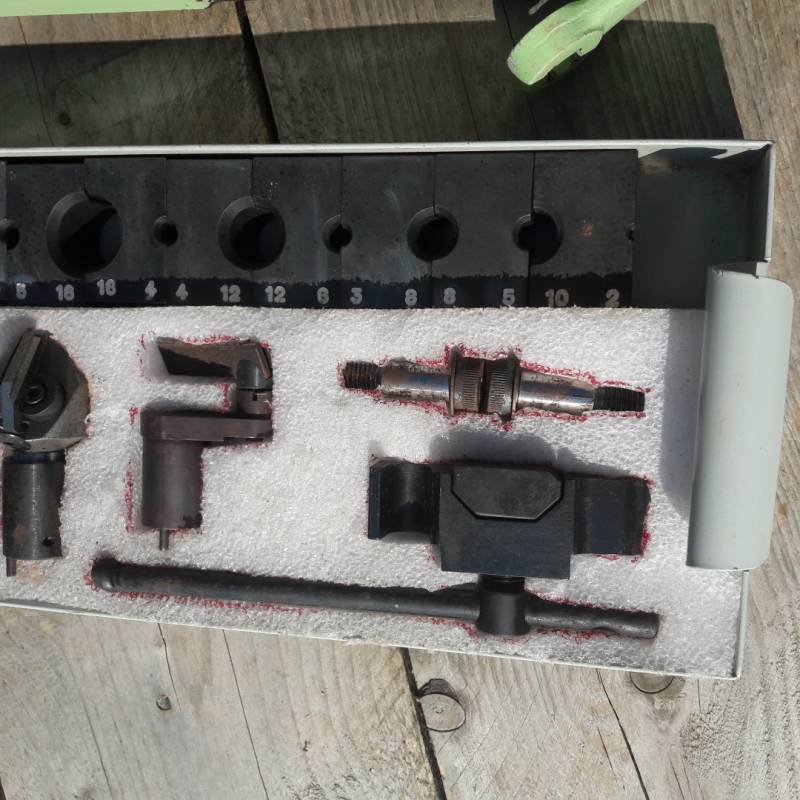

Contains 37 deg flaring tool for 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4 and 1-1/2 in. od tubing; internal deburring tool for 1/8 to 1/2 in. od tubing; internal deburring tool for 5/8 to 1-1/2 in. od tubing; external deburring tool and facing tool

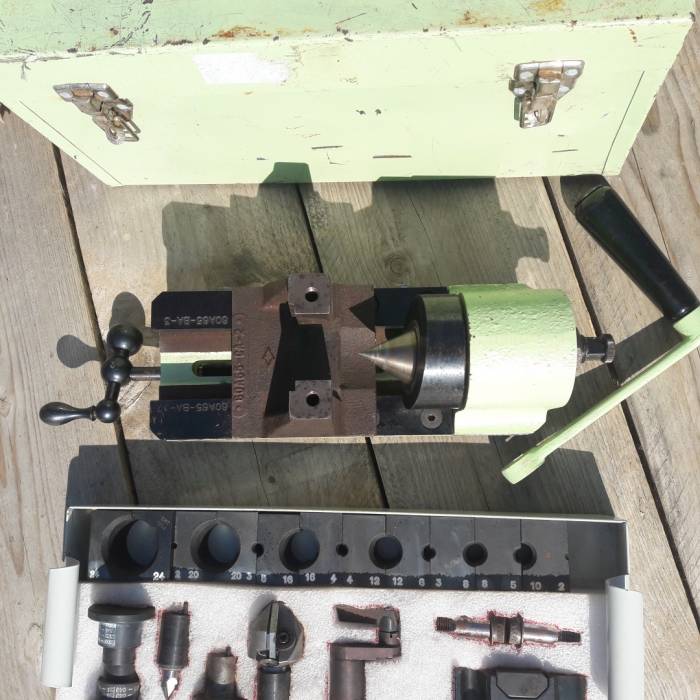

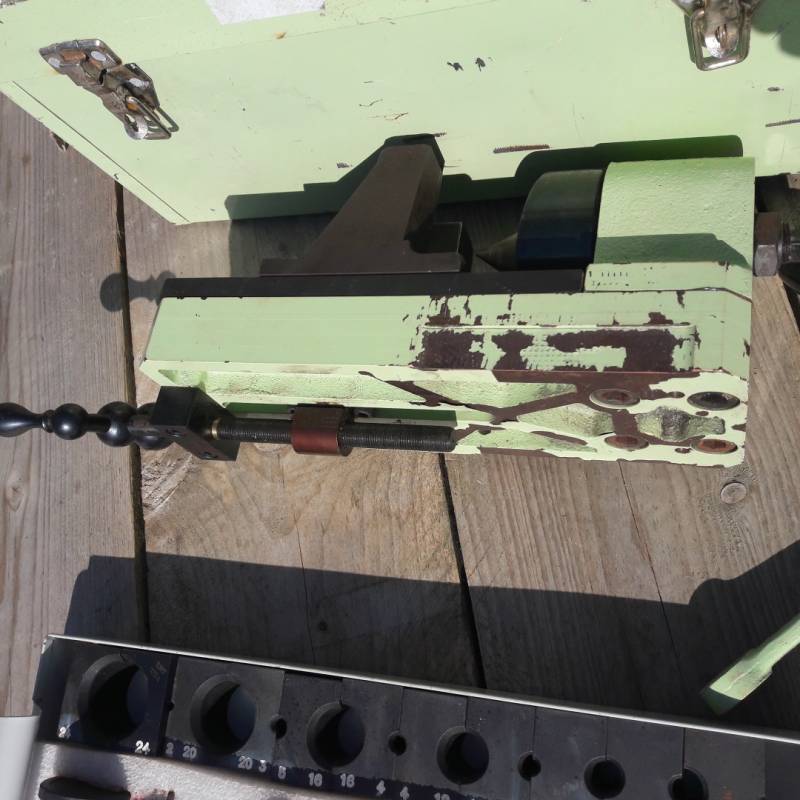

Precision tool flares (37°) 1/8" hard stainless steel and other tubing to extremely close tolerances. Swivel-head clamp locks tubing in smooth bore die blocks. Lathe type tube feed. Flares rolled out by ball-bearing mounted concentric flaring cone. Tool must be clamped in vise. Will flare 1/8" hard stainless steel tubing in the sizes and wall thicknesses listed below. In some cases these wall thicknesses can be exceeded when flaring aluminum, copper or soft steel tubing. Includes the facing and deburring attachments.
