Kit HALE P/N 296-5210-50-0

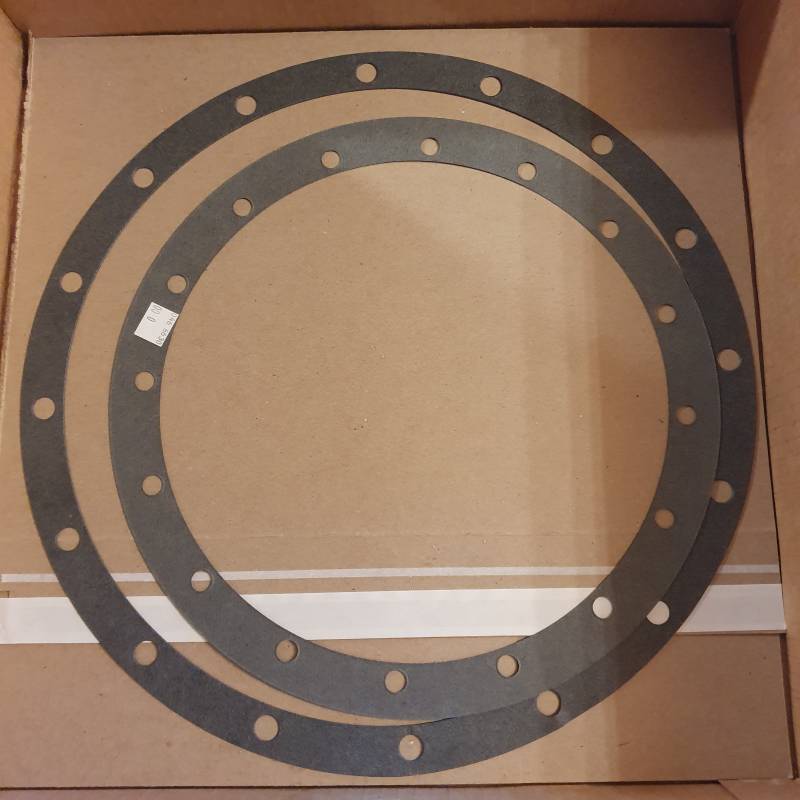

Seal Replacement Kit HALE P/N 296-5210-50-0 View larger

New

Mechanical Seal and Gasket Replacement Kit

P/N 296-5210-50-0

Can be used for the following Hale Fire Pumps :

QSG, QSMG, QG, QMAX, QTWO (LG and XG Gear Box)

QMAX & QTWO (LK and XK Gear Box)

QFLO, QPAK, DSD, 8FK

More details

499,00 €

Content

046-0220-00-0 x1  Pump body to bearing housing gasket

046-6020-00-0 x1 Bearing housing gasket (L or X Series gearbox

046-6460-00-0 x1 Bearing housing gasket (S series gearbox)

046-6370-00-0 x1 Gearbox cover gasket (L or X Series gearbox

046-6370-01-0 x1 Gearbox cover gasket (S series gearbox)

040-2260-10-0 x1Seal ring

040-2340-00-0 x1Seal ring

296-2050-00-0 x1 Gearbox oil seal

296-5210-09-0 x1 Mechanical seal

046-0220-00-0 x1 Pump body to bearing housing gasket

046-6890-00-0 x2 K Gearbox front and back cover gasket

046-6800-00-0 x2 K Gearbox cover gasket

040-2260-10-0 x1 Seal ring

040-2340-00-0 x1 Seal ring

296-2050-00-0 x1 Gearbox oil seal

296-5210-09-0 x1 Mechanical seal

040-2790-0-0 x1 Seal ring (8FG)

040-4490-00-0 x1 Seal ring (QFLO, QPAK, DSD)

046-0190-00-0 x1 Pump body gasket (8FG)

046-1640-00-0 x1 Pump body gasket (QFLO, QPAK)

046-6630-00-0 x1 Pump body gasket (DSD)

046-6020-00-0 x1 Pump body to gearbox gasket

046-6370-00-0 x1 Gearbox cover gasket (L Series gearbox)

046-6370-01-0 x1 Gearbox cover gasket (X Series gearbox)

048-0170-00-0 x1 Shim

064-5070-01-0 x1 Cotter pin (QFLO, QPAK, DSD)

064-5080-01-0 x1 Cotter pin (8FG)

296-2090-00-0 x1 Oil seal (QFLO, QPAK, DSD)

296-2090-01-0 x1 Oil seal (8FG)

296-5210-09-0 x1 Mechanical seal
