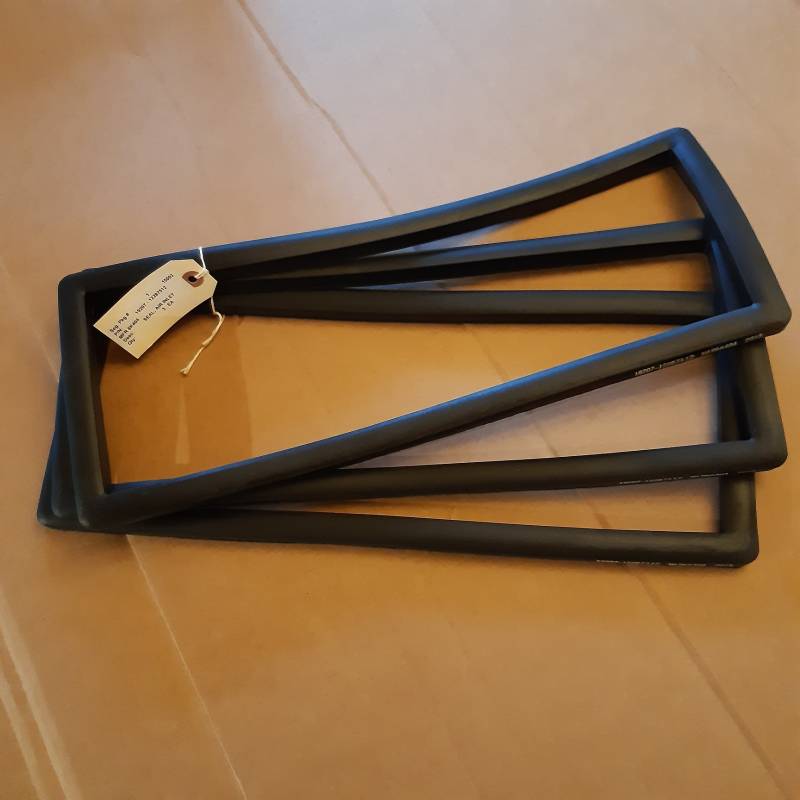

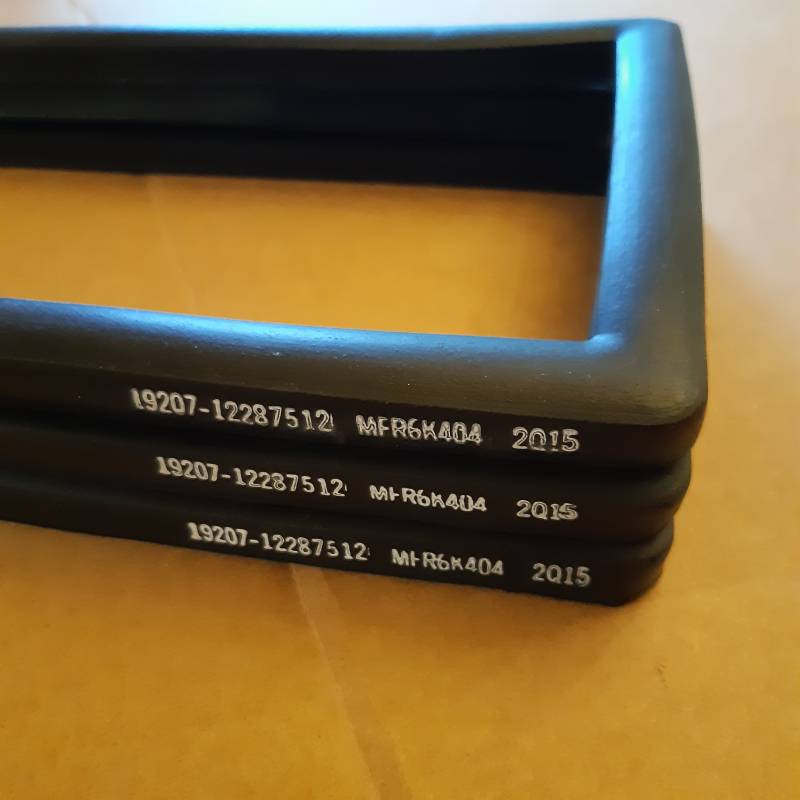

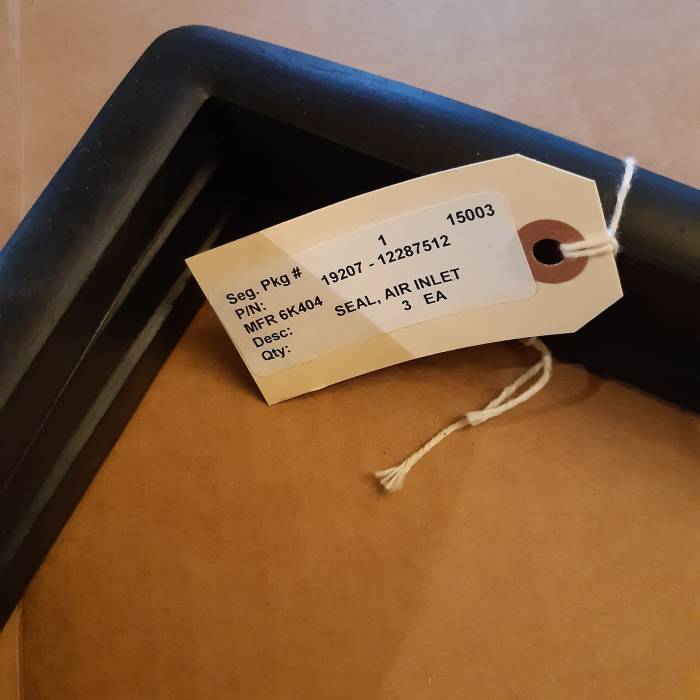

Seal 12287512 5330-01-098-6807
Seal
NSN 5330-01-098-6807
PN 12287512
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Condition: New

Seal

NSN 5330-01-098-6807

PN 12287512

More info

Name	Value
CROSS-SECTIONAL SHAPE STYLE	U SHAPE
INSIDE CORNER RADIUS	0.120 INCHES NOMINAL
OUTSIDE CORNER RADIUS	0.380 INCHES NOMINAL
APERTURE WIDTH	5.744 INCHES MINIMUM AND 5.756 INCHES MAXIMUM
APERTURE LENGTH	16.750 INCHES MINIMUM AND 16.990 INCHES MAXIMUM
CROSS-SECTIONAL HEIGHT	0.620 INCHES NOMINAL
CROSS-SECTIONAL WIDTH	0.750 INCHES NOMINAL
END ITEM IDENTIFICATION	2350-01-087-1095
CONSTRUCTION	ONE-PIECE
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM-D1056,TY1,CLA,GR3 ASSN STD SINGLE MATERIAL RESPONSE CORE
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-R-3065 MIL SPEC SINGLE MATERIAL RESPONSE JACKET AND ASTM-D2000 -5BC514A14B74C12F19 ASSN STD SINGLE MATERIAL RESPONSE JACKET
STYLE DESIGNATOR	NON-CIRCULAR
