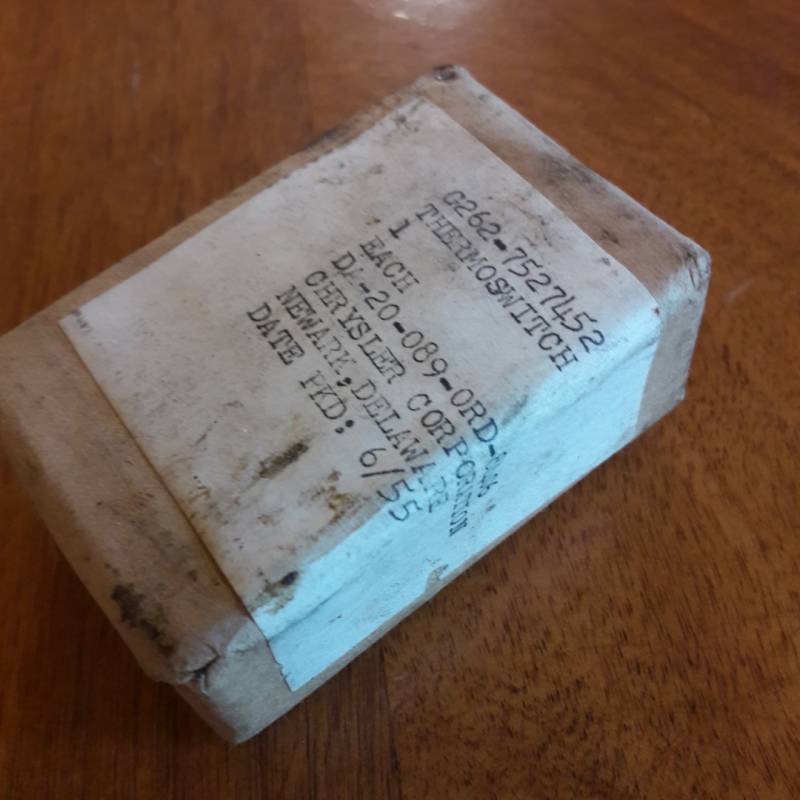

G262-7527452 Thermoswitch

G262-7527452 Thermoswitch View larger

New

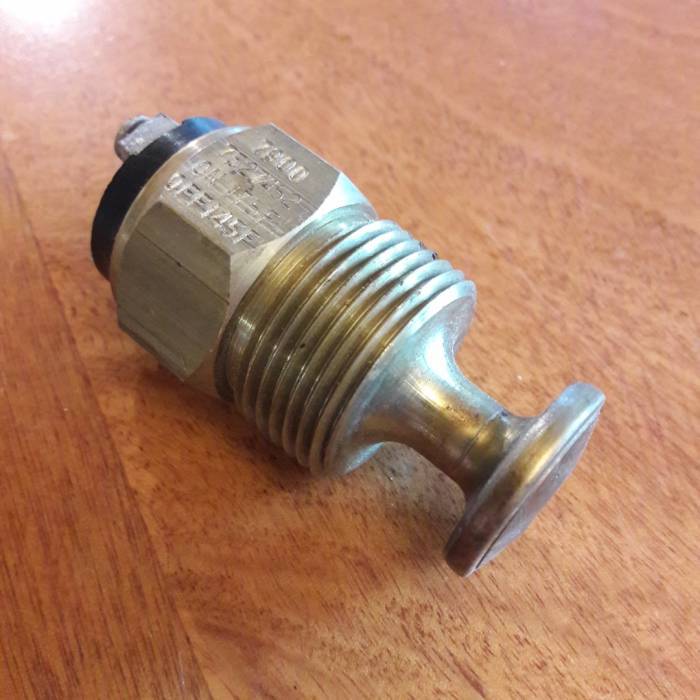

Thermoswitch engine oil cooler fan controller

175°F ON - 145°F OFF

NSN 5930-00-752-7452

PN 7527452 ; C4371-1-1

Fits Patton Tank G262 M47

More details

20,00 €

5930-00-752-7452 Features

MRCParameterCharacteristics
AASAThread Length0.703 inches nominal single threaded bushing
ABHPIII Overall Length2.688 inches nominal
ADAQBody Length1.579 inches nominal
AKBYTemp Sensing Element TypeInternal sensor
ASDBWidth Across Flats1.313 inches nominal
AXGYMounting MethodThreaded bushing
CBBLFeatures ProvidedTamper proof cap
CMLPThread Quantity per Inch14 single threaded bushing
CQGBContact Action StimulusIncrease
CQJXNominal Thread Size0.500 inches single threaded bushing
CRLDNonpile-up Contact Arrangement1 pole, single throw, normally open, momentary action
CSCFTerminal TypeScrew
CTHFContact Load Current Rating1.0 amperes resistive load single voltage
CTYCContact AdjustabilityDeactuation point not adjustable and actuation point not adjustable
CTYXContact Stimulus Rating175.00 actuation point nominal degrees fahrenheit and 145.00 deactuation point nominal degrees fahrenheit
CTZBContact Voltage Rating in Volts24.0 dc at sea level single voltage
MEDAMedia for Which DesignedLiquid
STYLIII Style DesignatorCylindrical W/flange
THSDThread Series DesignatorNpt single threaded bushing
