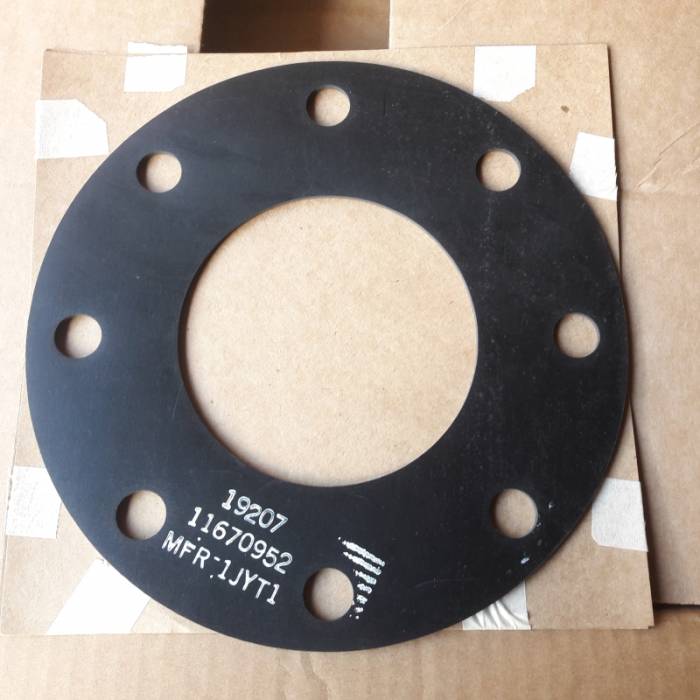

Gasket 11670952

Gasket 11670952 5330-01-083-6517 View larger

New

Gasket

NSN 5330-01-083-6517 5330010836517

PN 11670952

More details

5,00 €

  Technical Characteristics ( ILs )     5330-01-083-6517
MRCRequirementReply
 AAGR CROSS-SECTIONAL SHAPE STYLE SOLID SINGLE OR COMPOSITION
 AAUB HOLE DIAMETER 0.690 INCHES NOMINAL
 ABKG BOLT CIRCLE DIAMETER 7.500 INCHES NOMINAL
 ABKV OUTSIDE DIAMETER 9.000 INCHES NOMINAL
 ABVL APERTURE DIAMETER 4.560 INCHES NOMINAL
 ADVM CROSS-SECTIONAL THICKNESS 0.125 INCHES NOMINAL
 AECS BOLT HOLE QUANTITY 8
 CQFM HARDNESS RATING 65.0 SHORE DUROMETER A MINIMUM OVERALL AND 75.0 SHORE DUROMETER A MAXIMUM OVERALL
 MATT MATERIAL RUBBER CHLOROPRENE CLASS CR OVERALL
 MDCL MATERIAL DOCUMENT AND CLASSIFICATION ASTM D2000 2BC710 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
 STYL STYLE DESIGNATOR CIRCULAR
