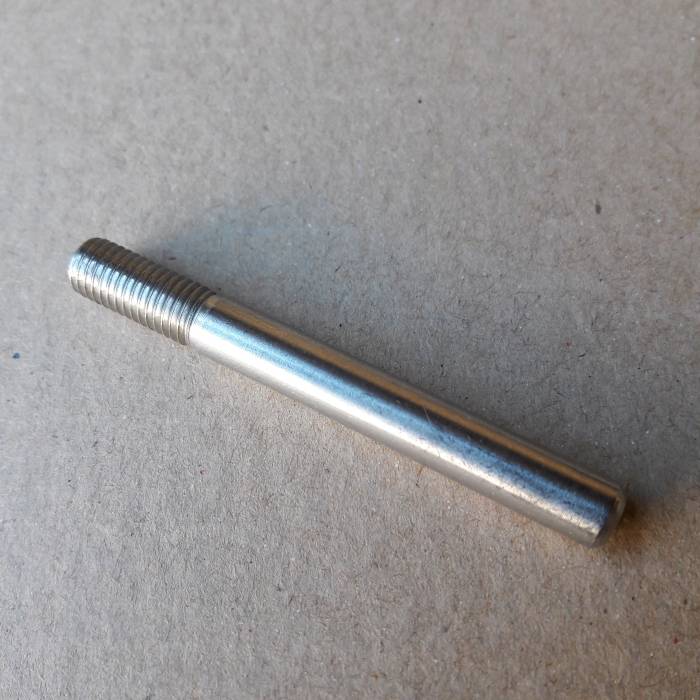

Pin Straight Threaded, Mobile Field Kitchen

PN 5-13-2515P22

NSN 5315-01-145-1253 5315011451253

More details

2,00 €

 Technical Characteristics ( ILs )     5315-01-145-1253
MRCRequirementReply
 AAGZ FIRST END STYLE OVAL
 AAHP SECOND END STYLE CHAMFERED
 AAJD THREAD CLASS 2A
 AAJF THREAD DIRECTION RIGHT-HAND
 AASA THREAD LENGTH 0.562 INCHES NOMINAL
 ACHT PIN OVERALL LENGTH 2.250 INCHES NOMINAL
 ACHU PIN OVERALL DIAMETER 0.2500 INCHES NOMINAL
 AMFM SECOND END TAPER LENGTH 0.062 INCHES NOMINAL
 CQBB SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
 CQJX NOMINAL THREAD SIZE 0.250 INCHES
 CRDY FIRST END LOCATION OVAL END
 CRSW PIN GRIP LENGTH 1.688 INCHES NOMINAL
 CSKM FIRST END OUTER RADIUS 0.125 INCHES NOMINAL
 CTHC SECOND END TAPER ANGLE 45.0 DEGREES NOMINAL
 MATT MATERIAL STEEL COMP 304 OVERALL
 MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
 THSD THREAD SERIES DESIGNATOR UNF
