MEP-805A 30 kW TQG Tier 1 Service Kit

Content

Description / Part Number / NSN / Qty

Control Box Assembly

RELAY KUP14D15-24VDC 5945-00-458-3351 8

RELAY/SWITCH MK2PSAC120 5945-01-365-9954 1

LAMP W-L=101/130 6240-00-143-3060 2

LIGHT, PANEL, GREEN 88-22662 6240-01-470-4272 3

S1 Switch, Rotary, 4 Position Master 75901LJ 5930-01-531-2972 1

S6 Switch, Rotary, Volt-Amp Meter 31904QT 5930-01-531-2975 1

TRC VR FUSE KIT

FUSE HOLDER BM6031SQ 5920-00-816-6892 1

FUSE, 3A, FAST ACTING KTK-3 5920-00-225-9983 1

SPADE TERMINAL (22-18 AWG) AA-8704-06 5940-01-425-2020 1

DISCONNECT TERMINAL, FEMALE RB2573 5940-01-112-9746 2

WIRE (88-20540-2, 20GA) 1342 6145-01-129-9955 1’

SCREW (10-32, 3/4") with star washer 5305-01-187-5878 1

WIRE TIE MS3367-4-9 5975-00-727-5153 3

Air Intake and Exhaust System

Element, Air Filter P18-2059 2940-01-378-1130 1

Filter Element 42841 2940-01-406-9542 1

Coolant System

Hose, Radiator, Upper 88-21909 4720-01-395-6532 1

Hose, Radiator, Lower 88-21908 4720-01-373-0526 1

Hose, Performed Radiator Filler 88-21985 4720-01-373-1405 1

Belt, Fan T24473 3030-00-264-3073 1

Generator Assembly

Bearing, Ball 312KDD 3110-00-155-6298 1

O-Ring 865873-01 5331-01-369-7318 1

Cooling System

Thermostat, Flow, Control RE33705 6685-01-348-4793 1

Gasket T20215 5330-00-340-5374 1

Hose Performed, Bypass T20277 4720-01-116-7814 1

Fuel System

Hose Assembly, Non-Metallic 483666 4720-00-913-5910 8.5

Hose Assembly, Non-Metallic 00904E-504-J04 4720-01-386-1872 1

Hose Assembly, Non-Metallic A3411-54 4720-01-375-1392 1

Hose Assembly, Non-Metallic 00904E-504-J04-00963 4720-01-386-1856 1

Filter Body Fluid 88-22755 2940-01-365-6535 1

Nut A3816 5310-01-197-1473 5

Gasket 88-20286 5330-01-366-2836 3

Hose, Fuel Fill 88-22068 4720-01-392-0319 1

INJ Return Line Bushing, Rubber R51936 5365-01-124-0188 8 8 12 12 7 11

INJ Bushing R79605 5365-01-118-4113 4

INJ O-Ring R92352 5331-01-333-2698 4

INJ Washer R48000 5310-01-228-0471 4

Filter, Element Fluid RE62418 2910-01-359-4971 1

Seal 29577 5330-01-383-8865 1

Strainer, Element Fluid 29575 4730-01-382-8751 1

Seal 28869 5330-01-360-7171 1

Lubrication System

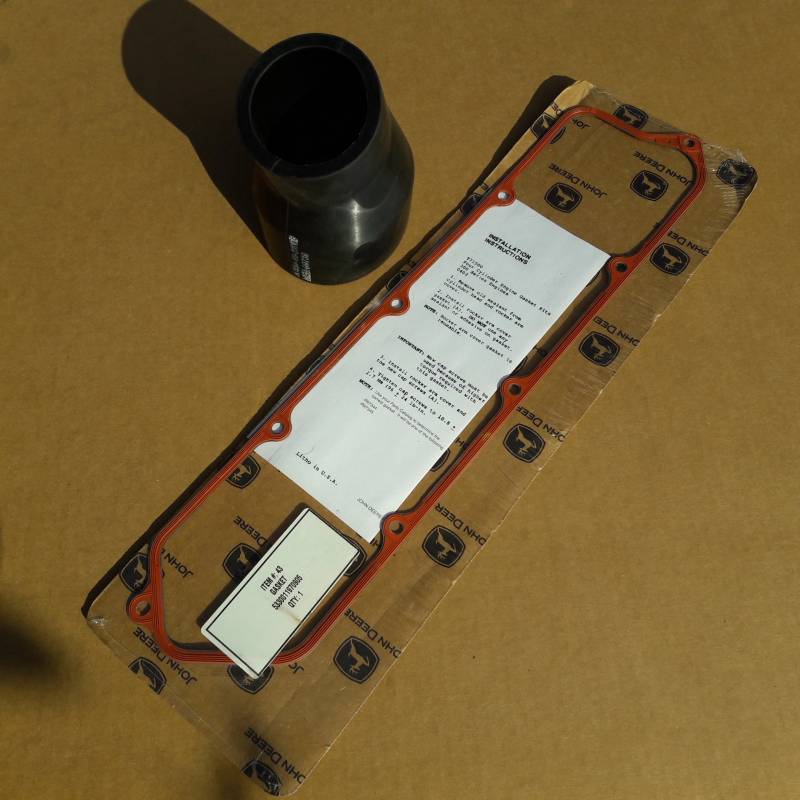

VALVE COVER GASKET R73521 5330-01-197-0905 1

Filter, Element, Fluid PH20 2940-00-007-4791 1

Oil Cooler Hose, Non-Metallic MF-T60811 4720-01-261-5368 0.6

Oil Cooler Hose, Performed R99802 4720-01-337-4474 2
