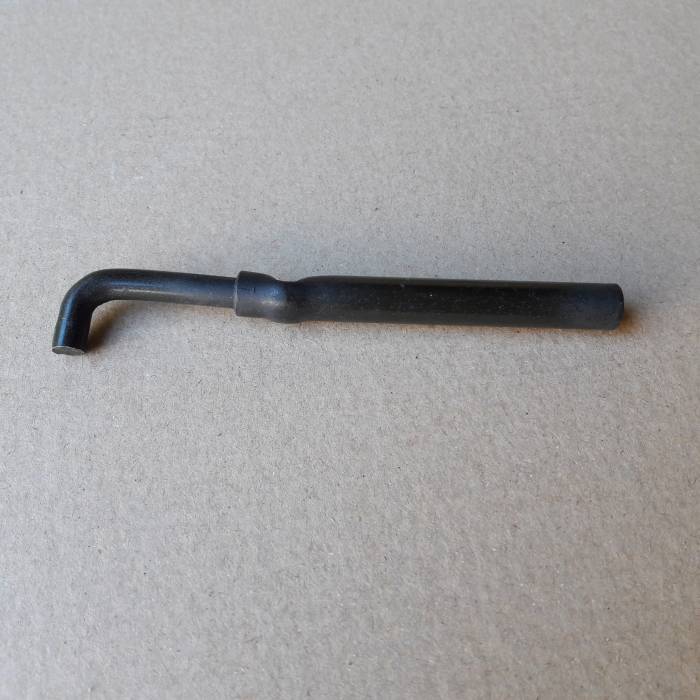

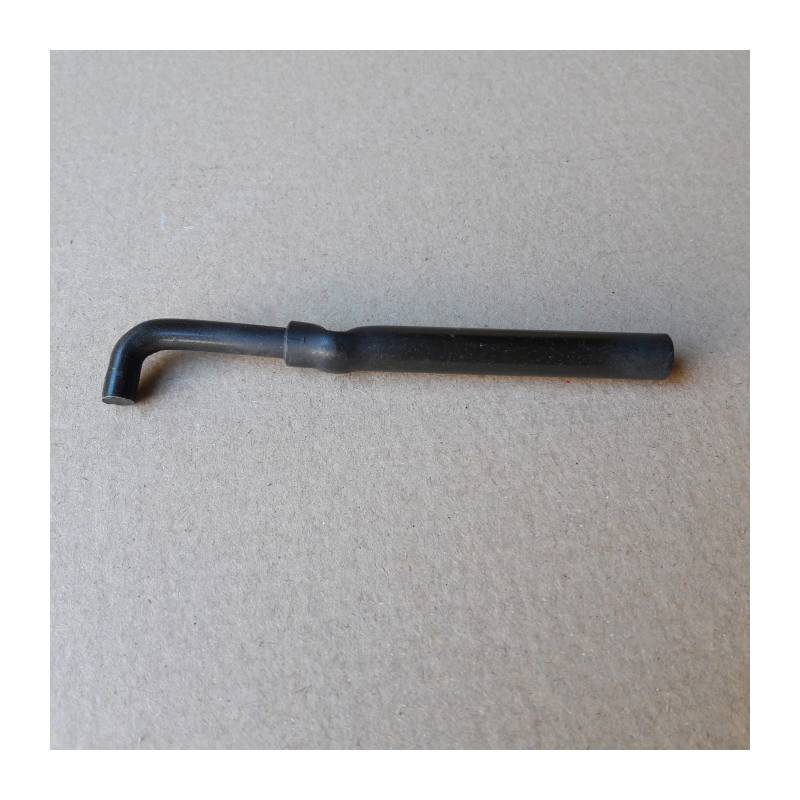

Rod End, Cargo Shell Door

Rod End, Cargo Shell Door View larger

New

Rod End, Threaded

Cargo Shell Door

PN 12339589 ; 16386(71) ; 16386(75)

NSN 5340-01-197-2736 5340011972736

More details

10,00 €

Fits :

M996A1, M1045A1, M1043A1, M1044A1, M1046A1, M1025A1, M1026A1, M1045A2, M1043A2, M1025A2, M966, M1025, M1026, M1045, M1043, M1044, M1046, M1121

  Technical Characteristics ( ILs )     5340-01-197-2736
MRCRequirementReply
 AAJF THREAD DIRECTION RIGHT-HAND OVERALL
 AASA THREAD LENGTH 1.250 INCHES NOMINAL ROD CONNECTION
 ABHP OVERALL LENGTH 4.430 INCHES NOMINAL
 ADDE UNTHREADED END LENGTH 3.180 INCHES NOMINAL
 AKYR UNTHREADED END OUTSIDE DIAMETER 0.250 INCHES NOMINAL
 CQJX NOMINAL THREAD SIZE 0.250 INCHES ROD CONNECTION
 THSD THREAD SERIES DESIGNATOR UNF ROD CONNECTION
