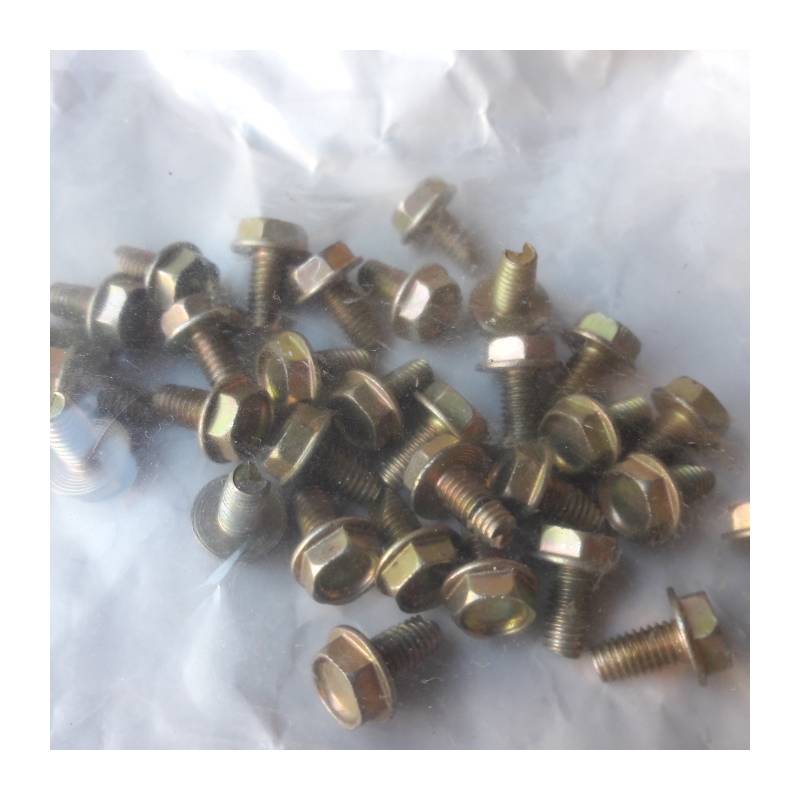

Screw, Tapping 9414241
Screw, Tapping
PN 9414241
NSN 5305-01-361-5353 5305013615353
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Reference C19-7

Condition: New

Screw, Tapping

PN 9414241

NSN 5305-01-361-5353 5305013615353

More info

Technical Characteristics ( ILs ) 5305-01-361-5353
MRC	Requirement	Reply
AASB	FASTENER LENGTH	0.234 INCHES MINIMUM AND 0.344 INCHES MAXIMUM
AASK	HEAD STYLE	HEXAGON EXTENDED WASHER
AASU	HEAD HEIGHT	0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM
AATB	WIDTH BETWEEN FLATS	0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
AATC	EXTENDED WASHER DIAMETER	0.384 INCHES MINIMUM AND 0.414 INCHES MAXIMUM
AATD	EXTENDED WASHER THICKNESS	0.019 INCHES MINIMUM AND 0.031 INCHES MAXIMUM
ABQZ	INTERNAL DRIVE STYLE	SLOT
CRGF	NONMACHINE THREAD STYLE	WIDE FLUTE (TYPE T)
CTYF	NONMACHINE NOMINAL THREAD DIAMETER	0.190 INCHES
MATT	MATERIAL	STEEL OVERALL
MDCL	MATERIAL DOCUMENT AND CLASSIFICATION	GM 6010-M MFR REF SINGLE MATERIAL RESPONSE OVERALL
SFTT	SURFACE TREATMENT	CADMIUM OVERALL
STDC	SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	GM 4341-M MFR REF SINGLE TREATMENT RESPONSE OVERALL
