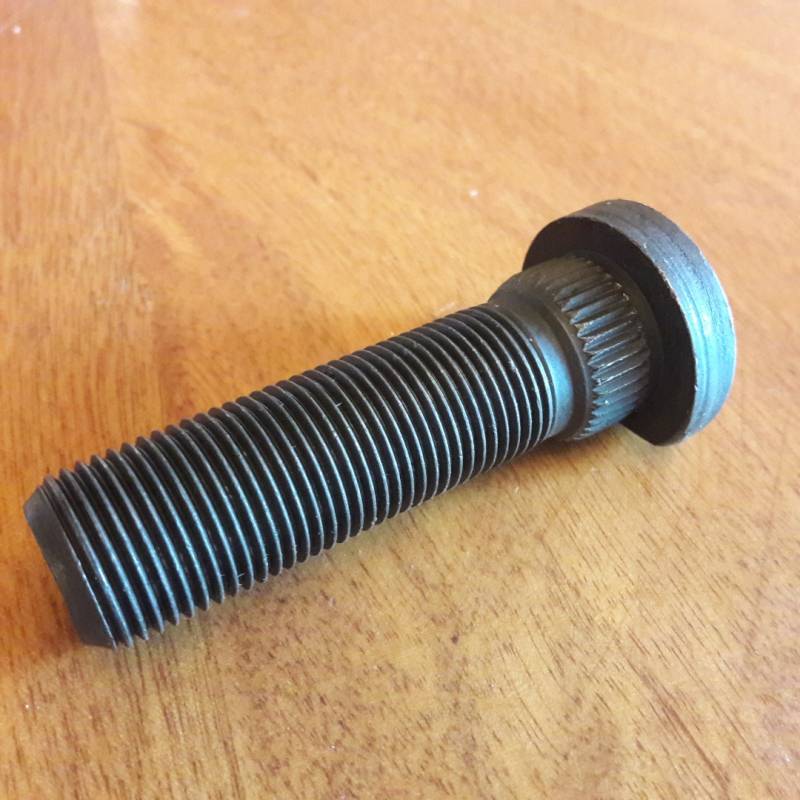

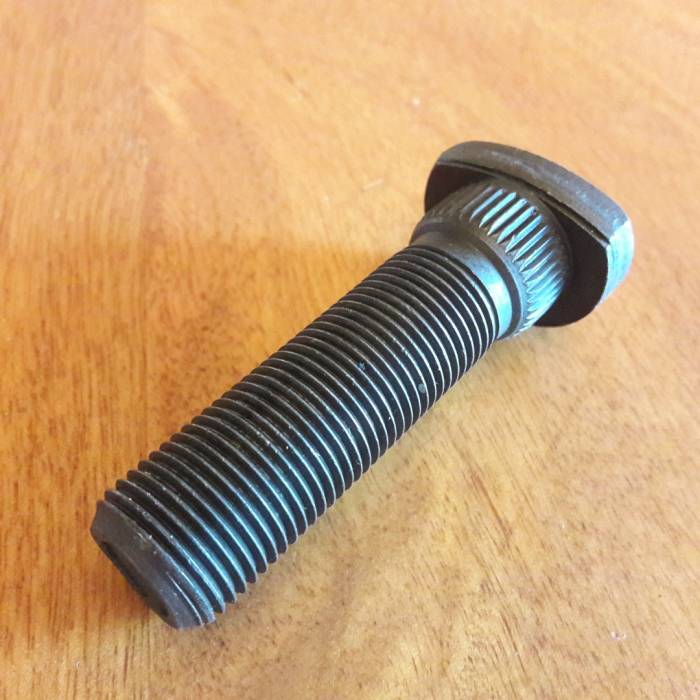

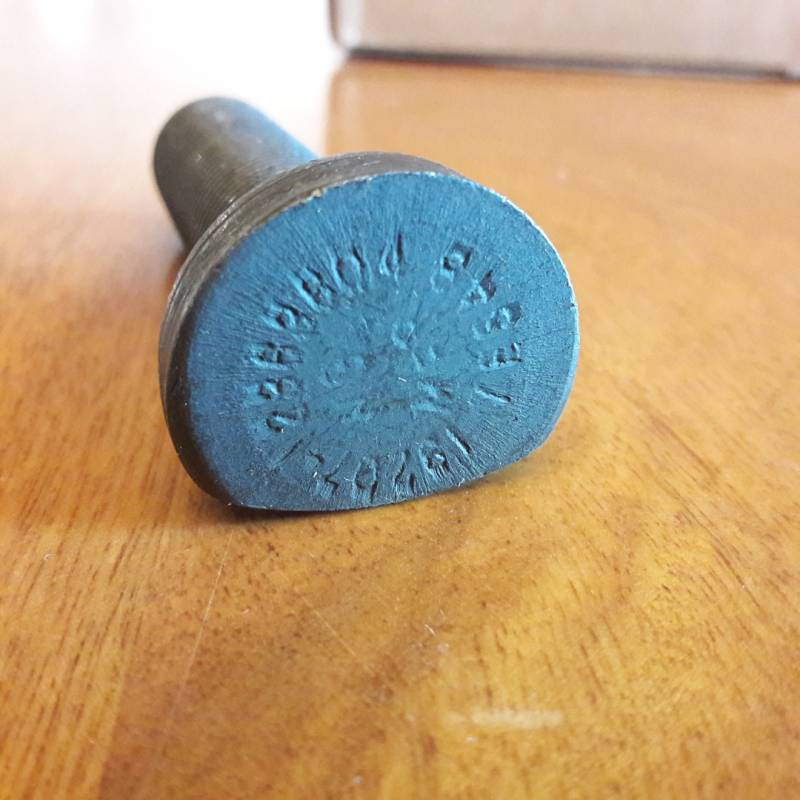

2 Piece Rim Stud

NSN 5306-01-314-6742

PN 12363604

Mehr Infos

Nicht mehr lieferbar

8,00 €

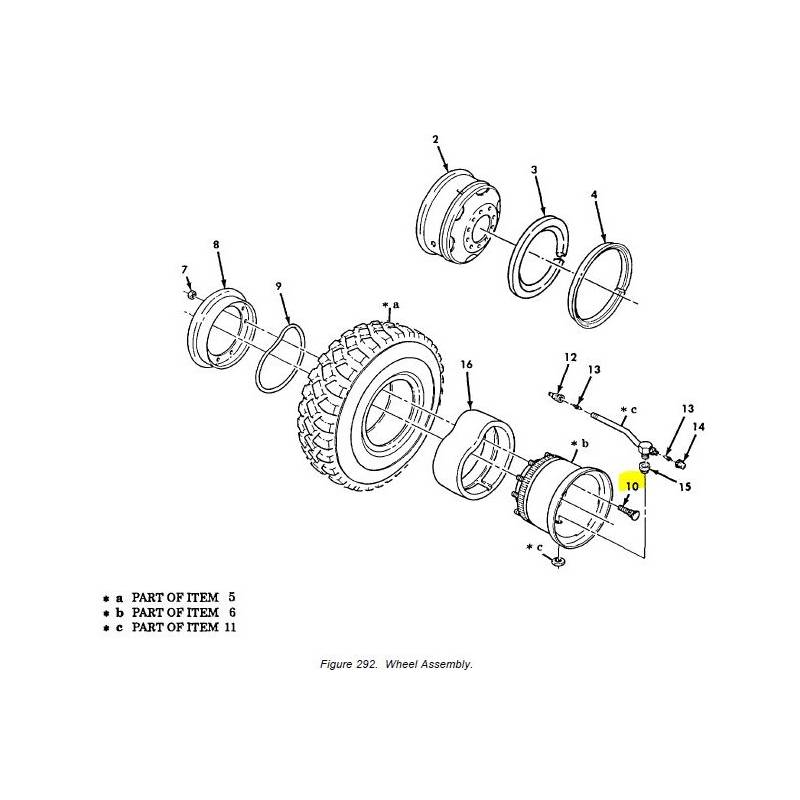

Assembly Studs to bolt two halves of Military Combat Wheels Together.

Used on M939A1 andM939A2 5 Ton and M35A3 2.5 Ton Military Vehicles.

Fits Wheel Part Numbers: 12448697 NSN 2530-01-398-3380 and 12363603 NSN 2530-01-303-0801

THREAD CLASS3A
THREAD DIRECTIONRIGHT-HAND
THREAD LENGTH2.120 INCHES NOMINAL
FASTENER LENGTH2.750 INCHES NOMINAL
HEAD STYLEDEE CHAMFER
HEAD DIAMETER1.280 INCHES NOMINAL
HEAD HEIGHT0.260 INCHES NOMINAL
SHOULDER DIAMETER0.840 INCHES NOMINAL FIRST SHOULDER
SHOULDER LENGTH0.440 INCHES NOMINAL FIRST SHOULDER
RIB MAJOR DIAMETER0.8590 INCHES MINIMUM AND 0.8690 INCHES MAXIMUM
RIB LENGTH0.380 INCHES NOMINAL
DISTANCE FROM LARGEST DIAMETER OF BEARING SURFACE OF HEAD TO RIBS0.320 INCHES NOMINAL
RIB MINOR DIAMETER0.8255 INCHES MINIMUM AND 0.8305 INCHES MAXIMUM
RIB QUANTITY40
NOMINAL THREAD DIAMETER0.750 INCHES
THREAD QUANTITY PER INCH16
SHOULDER SHAPERIBBED FIRST SHOULDER
MATERIALSTEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATIONSAE J429 GR 8 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENTPHOSPHATE ZINC OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATIONDOD-P-16232 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
THREAD SERIES DESIGNATORUNF
