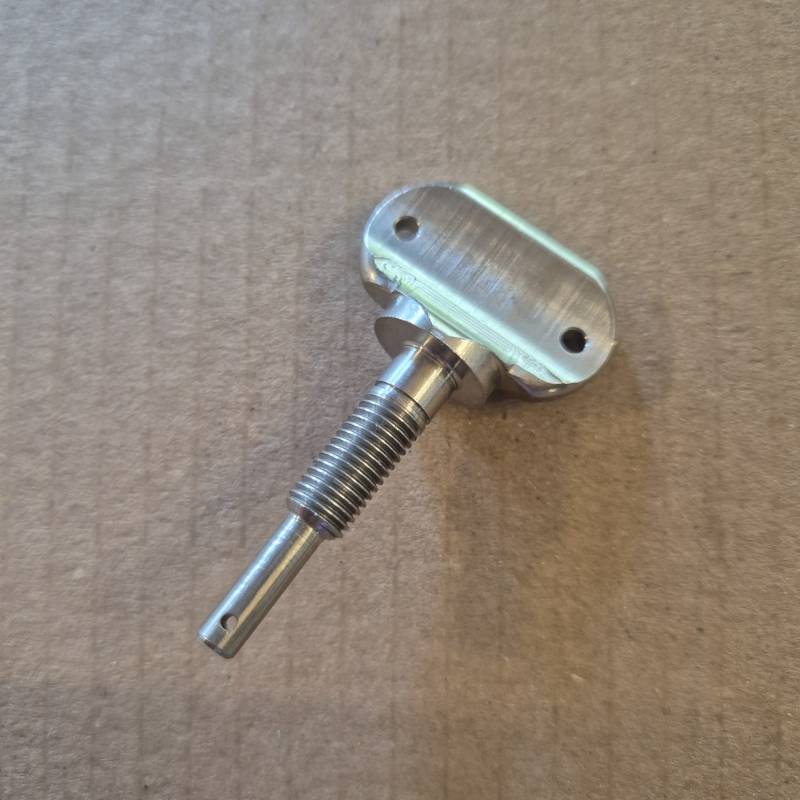

Thumbscrew A3132831-1
View larger
CMM4-1
New
Thumbscrew Sincars AN/VRC
NSN 5305-01-304-4993
P/N A3132831-1 ; A3013607-1
45 Items
Technical Data | NSN 5305-01-304-4993
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |
| NOMINAL THREAD DIAMETER | 8.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 18.25 MILLIMETERS NOMINAL |
| FASTENER LENGTH | 39.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | A3014011, CAGE 80063 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C80 THUMB NO. 4 |
| HEAD HEIGHT | 22.0 MILLIMETERS NOMINAL |
| WIDTH BETWEEN FLATS | 34.0 MILLIMETERS NOMINAL |
| HOLE CONFIGURATION STYLE | E17 WING |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 3.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | 1.57 MM MIN AND 1.65 MM MAX DRILLED HOLE IN THREADS, 36.0 MM DISTANCE FROM BEARING SURFACE OF HEAD |
