Kelcor 60A65 Imperial 407-F

Kelcor 60A65 Imperial 407-F View larger

Used

37° DEG Flaring Tool hand Operated

Kelcor 60A65

Imperial 407-F

Jasco 60A65 ; 60A65B

NSN 5180-00-799-8860

With metal box - Missing Jaw 6-10 (3/8 & 5/8)

More details

2 490,00 €

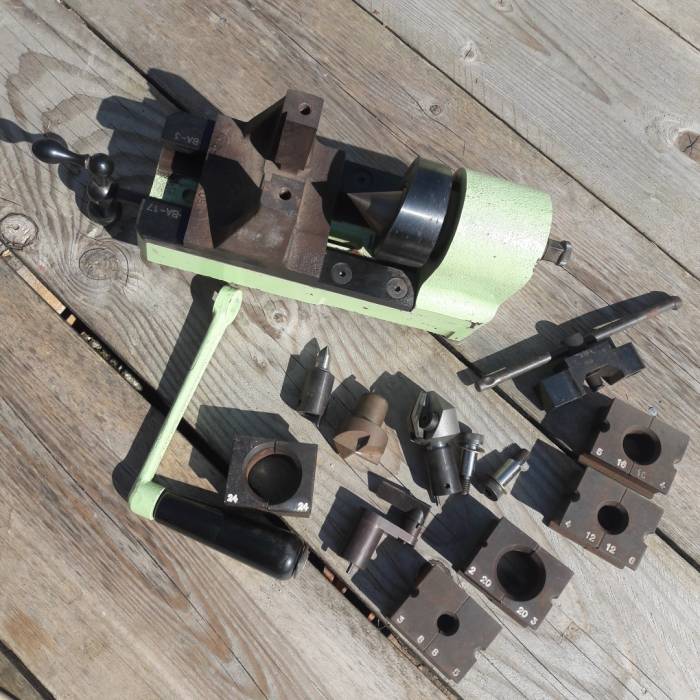

Contains 37 deg flaring tool for 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4 and 1-1/2 in. od tubing; internal deburring tool for 1/8 to 1/2 in. od tubing; internal deburring tool for 5/8 to 1-1/2 in. od tubing; external deburring tool and facing tool

Precision tool flares (37°) 1/8" hard stainless steel and other tubing to extremely close tolerances. Swivel-head clamp locks tubing in smooth bore die blocks. Lathe type tube feed. Flares rolled out by ball-bearing mounted concentric flaring cone. Tool must be clamped in vise. Will flare 1/8" hard stainless steel tubing in the sizes and wall thicknesses listed below. In some cases these wall thicknesses can be exceeded when flaring aluminum, copper or soft steel tubing. Includes the facing and deburring attachments.
