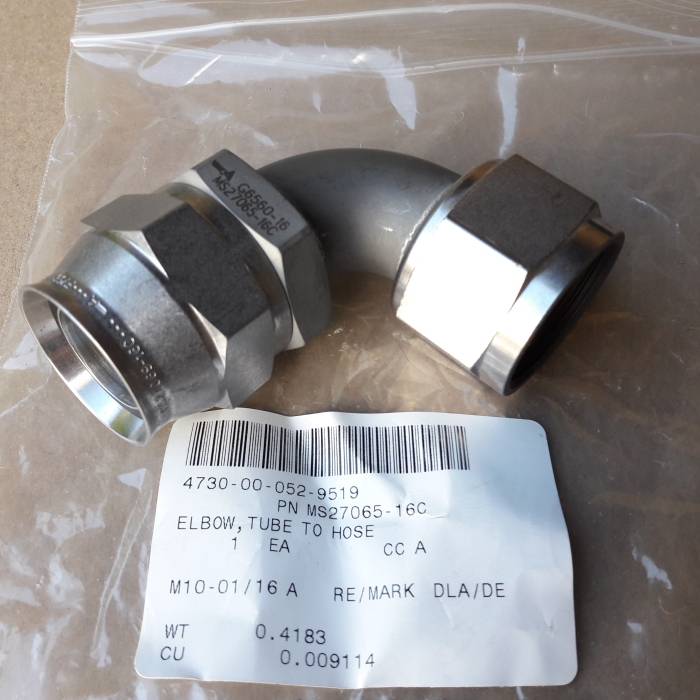

Elbow, Tube to hose MS27065-16C
View larger
New
Elbow, Tube to hose
PN MS27065-16C
NSN 4730-00-052-9519 4730000529519
| MCRL INFORMATION 4730-00-052-9519 | |||||||
|---|---|---|---|---|---|---|---|
| Part No. | RNCC | RNVC | RNFC | SADC | DAC | CAGE | Name |
| MS27065-16C | 5 | 1 | 3 | 3 | 50599 | PARKER-HANNI | |
| MILF27272 | 4 | 1 | 3 | 3 | 81349 | MILITARY SPE | |
| MS27065-16C | 5 | 9 | 3 | 3 | 12157 | RESISTOFLEX | |
| MS27065-16C | 5 | 1 | 3 | 3 | 00624 | EATON-AEROQU | |
| MS27065-16C | 5 | 2 | 4 | 6 | R1120 | SATAIR A/S | |
| Technical Characteristics ( ILs ) 4730-00-052-9519 | ||
|---|---|---|
| MRC | Requirement | Reply |
| AAJD | THREAD CLASS | 3B 1ST END |
| AEHZ | MAXIMUM OPERATING TEMP | -54.0 DEG FAHRENHEIT 1ST RESPONSE |
| AEHZ | MAXIMUM OPERATING TEMP | 242.0 DEG FAHRENHEIT 2ND RESPONSE |
| AHNC | CONNECTION STYLE | PLAIN (HOSE) 2ND END |
| AHNC | CONNECTION STYLE | SWIVEL NUT, FLARE (TUBE) STYLE 3 OPTIONAL END 1ST END |
| AHSJ | LEG LENGTH | 2.063 INCHES NOMINAL 1ST END |
| AHSJ | LEG LENGTH | 2.631 INCHES NOMINAL 2ND END |
| AWLS | CONNECTION TYPE | THREADED EXTERNAL HOSE 2ND END |
| AWLS | CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END |
| CMLP | THREAD QUANTITY PER INCH | 12 1ST END |
| CQGM | MAXIMUM OPERATING PRESSURE | 1250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CQJX | NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| CQJX | NOMINAL THREAD SIZE | 1.375 INCHES 2ND END |
| CQRB | SEAT ANGLE | 37.0 DEGREES 1ST END |
| CRFY | FLOW ANGLE | 90.0 DEGREES |
| CWFD | NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| MATT | MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MEDA | MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| SFTT | SURFACE TREATMENT | PASSIVATE OVERALL |
| THSD | THREAD SERIES DESIGNATOR | UN 1ST END |
| THSD | THREAD SERIES DESIGNATOR | UNEF 2ND END |
